Preventing cracks in buildings
by Raj Aggarwal

CRACKS in buildings are very common and give an impression of faulty work. Penetration of moisture through them spoils the external as well as internal finish of the building. Though it may not be possible to eliminate cracks altogether these can be minimised by careful planning and construction. Certain number of cracks always occur in RCC and brick work whenever stresses in structure exceed its strength, which can be caused due to wind pressure, foundation settlement, moisture changes and increase in load etc. Cracks are generally of two types. First are non-structural cracks (shrinkage cracks) not damaging the structure directly, but with the passage of time and seepage of water, rusting of steel reinforcement takes place making the structure unsafe. Second are structural cracks which take place due to incorrect design, overloading and faulty construction and can cause major damage to the structure.

Latest buildings with thin walls comparatively tall and slender constructed on a war footing are more cracks prone as compared to old short buildings with thick walls built at a slow speed. Therefore measures for control of cracks in buildings have assumed much significance these days. The cracks up to 1 mm in width even though closely spaced and greater in number are less damaging then a fewer number of wide cracks (more than 2 mm width).

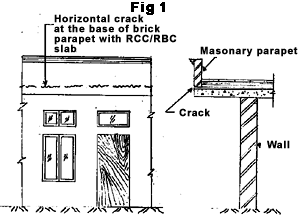

Horizontal cracks at the base of a brick parapet wall over an RCC/RBC cantilevered (projected) slab are very common and we find almost in maximum buildings as shown in photograph and fig. 1. Such cracks occur due to differential expansion and contraction of RCC and brick work. By having RCC parapet instead of brick parapet such cracks can be avoided completely. However, these can be minimised by delaying the construction of brick parapet over the slab for a period of minimum one month and simultaneously plastering on parapet and slab should also be deferred for another one month. Moreover, plaster should be discontinued by V-groove at the joint of slab and brick parapet to conceal the crack if any takes place later on.

Dislodging or cracking of glazed, marble and granite tiles from walls can be checked by allowing about one month’s time to new brick walls to undergo excessive shear stress likely to develop between wall and the tiles before fixing the same.

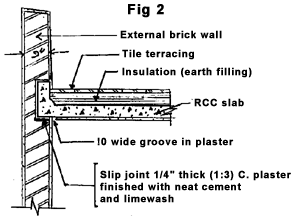

Cracks in external walls along the roof level usually occur when a roof slab undergoes thermal movement due to variation in temperature. Such shear cracks can be prevented by providing a slip joint bearing as shown in fig.2. between slab and supporting wall with a smooth bearing for RCC slab/beam with 1/4 inch thick (1.3) cement plaster finished with a floating coat of neat cement followed by a thick coat of limewash. Moreover, the bearing of the slab shall not be extended to full thickness of external wall. Roof slab must be provided with adequate insulation in the shape of earth filling/tile terracing. Ceiling plaster and wall plaster should be made discontinuous by a 10mm wide groove. This joint will also check the horizontal cracks at window sill and lintel level in the topmost storey of the building.

Cracks in partition wall supported on RCC beam and slab can be avoided by having horizontal expansion joint/gap between the top of the wall and soffit of beam/slab, filled with some mastic compound and by delaying the construction of partition wall as well as plaster work as much as possible.

Vertical cracks occur when two RCC beams with expansion joints rest over one masonary pillar. Such cracks can be checked by providing RCC bed plate over the masonary pillar for its full size finished with a coat of neat cement.

Vertical cracks along the junction of RCC column and brick walls generally appear after a few months of construction due to differential strain between RCC and brick work. Cracks, if thin in size, can be filled in at the time of finishing coat and by removing 10cm. wide strip of plaster around the crack and then filling the crack after enlarging and cleaning the same with mortar in case of wide cracks.

Cracks in RCC sun shades, projections and louvers generally occur due to inadequate cover, more water cement ratio and insufficient cover to reinforcement. To prevent such cracking and premature deterioration, it is required to construct these components with (1:1½:3) concrete of M-20 mix, with proper cover to steel reinforcement, lesser water cement ratio, proper compaction and curing of concrete for 10 days, the minimum required time. Expansion joints should also be provided at required intervals to check transverse cracks.

Freshly laid cement concrete pavements and slabs some times also develops cracks before concrete has hardened due to plastic shrinkage, specially during hot weather. In order to prevent such cracks use of warm aggregates (bajri and sand) and water should be avoided by storing the same in shaded portion instead of direct sun, wherever possible. Concreting should be done during early hours of the day when bajri and mixing water are comparatively cool.

Corner cracks in concrete floor panels can be minimised by using less water while mixing the concrete and avoiding excessive trowelling during finishing. Upheaving of concrete floor which usually happens due to sulphate attacks can also be avoided by using the brick ballast not containing more than 1% of soluble sulphates in the base course. Settlement of all types of floors can be checked by filling the earth in 9 inches layers and then watering and compacting the same before the floor is laid.

Cracks in roof terracing results in leakage of roof during rains. Such cracking occurs along the parapet at the junction of the terrace and parapet. Such cracks should be repaired by enlarging, cleaning the cracks and filling with some mastic compound instead of cement mortar.

Cracks around door chowkets occur mainly due to shrinkage of unseasoned wooden frames. Such cracks can only be avoided by using properly seasoned wooden frames having 10x10 mm size recess at the outer side of the chowket. These cracks can also be minimised by allowing RCC lintel to dry and shrink as much as possible before plastering of wall.

In general, to overcome cracks, masonary work should be proceeded systematically and uniformly at all levels. The plaster work on wall should be deferred as much as possible (minimum one month) so as to let shrinkage in RCC and masonary work take place before plastering. Cracks more than 1.5 mm width generally need repairing. Carrying out repairs to cracks should only be started when these have been stabilised. No useful purpose is served in repairing the cracks when these are still developing. Large number of cracks can be avoided if vibrated concrete with less water is used in all the construction work. Minor cracks repaired with the special putties (adhesives) like Feviseal/M seal available in the market have shown very good results.

Fig 1


Fig 2
